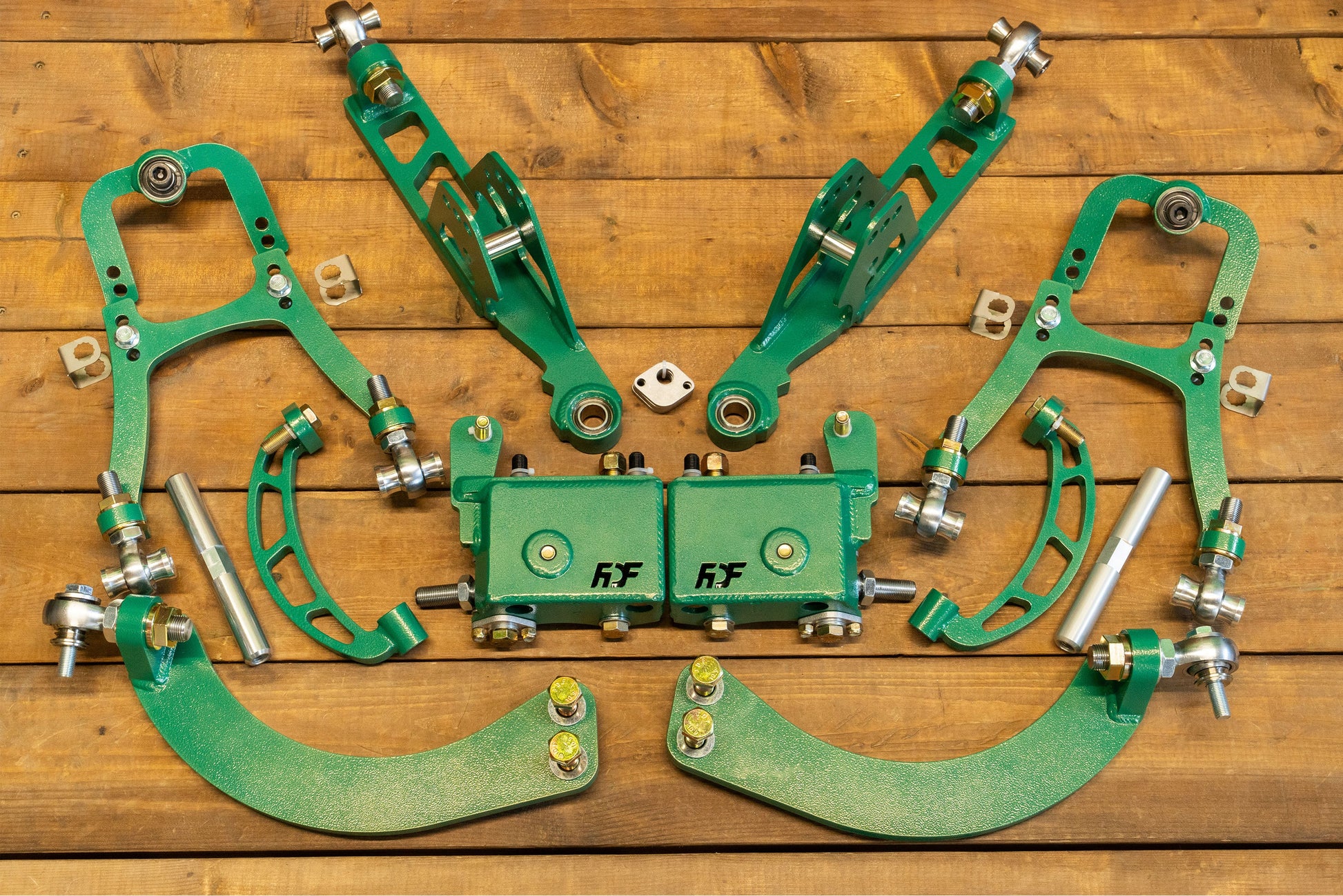

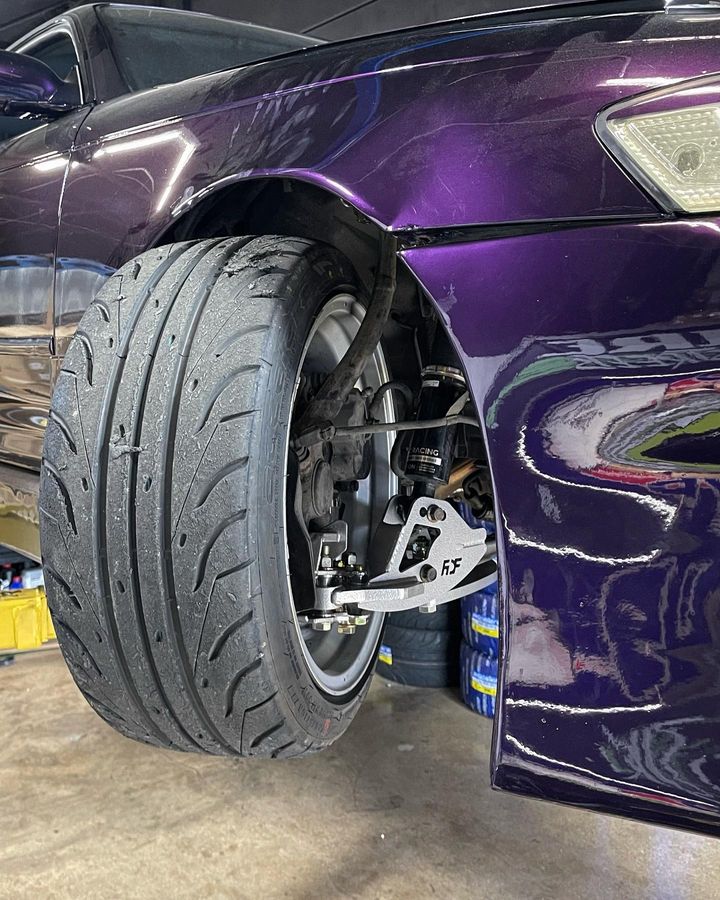

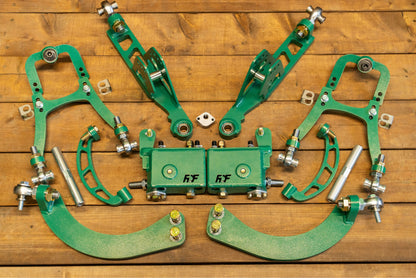

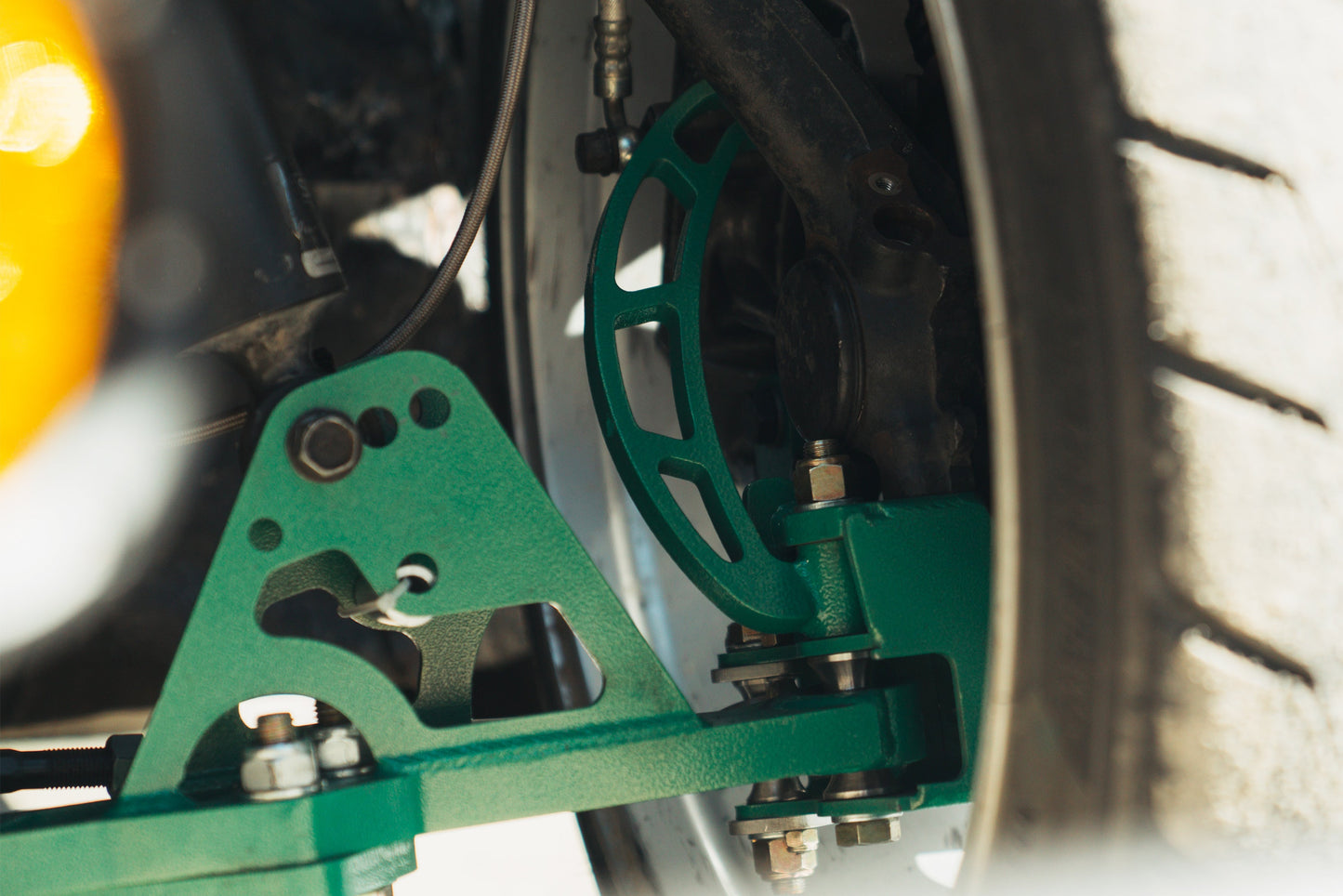

IS300 / JZX90 / JZX100 Mega Mantis Angle Kit

Don’t let the knuckle adapter fool you—this full angle kit gets you over 65 degrees of steering angle without the need for a full custom knuckle.

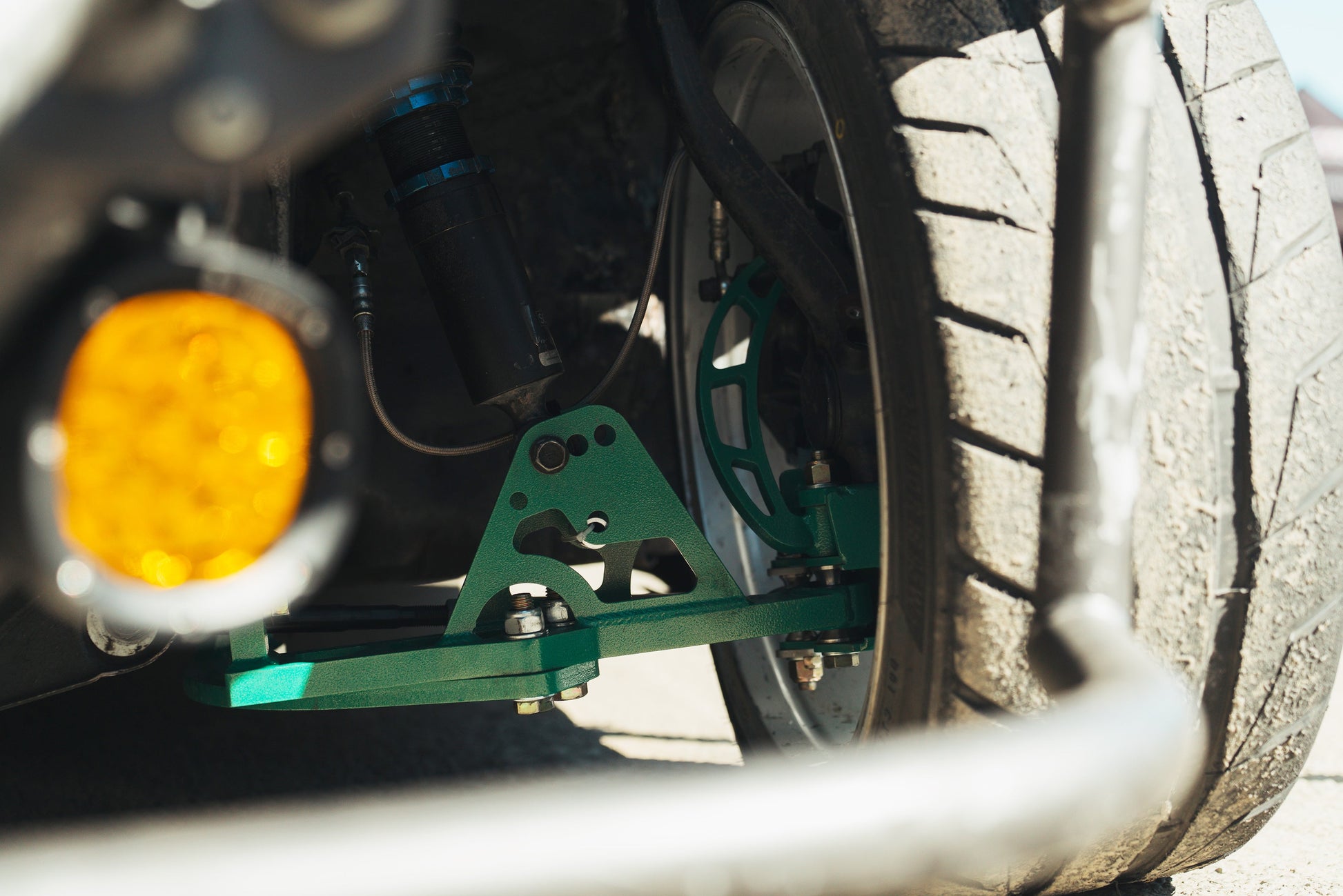

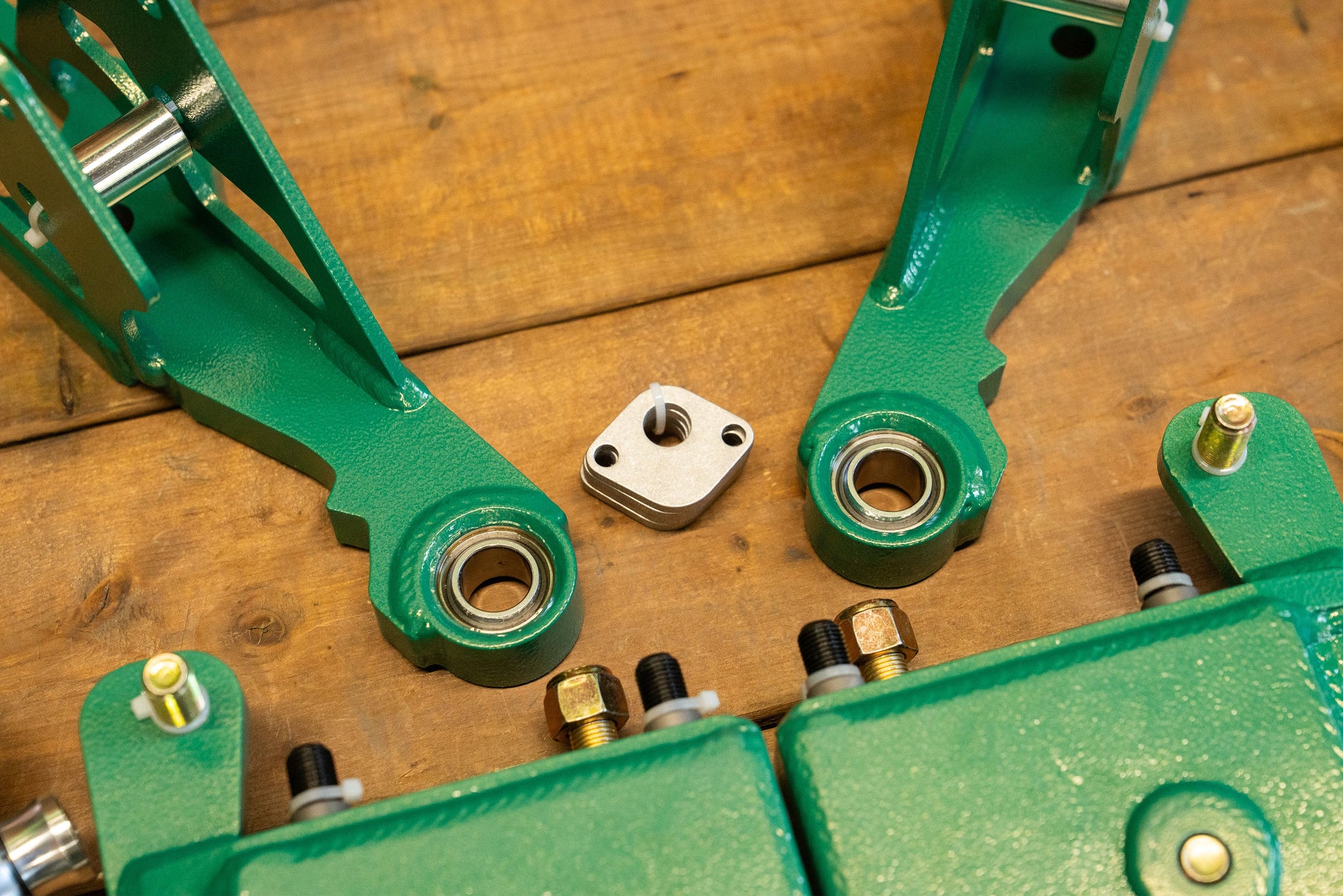

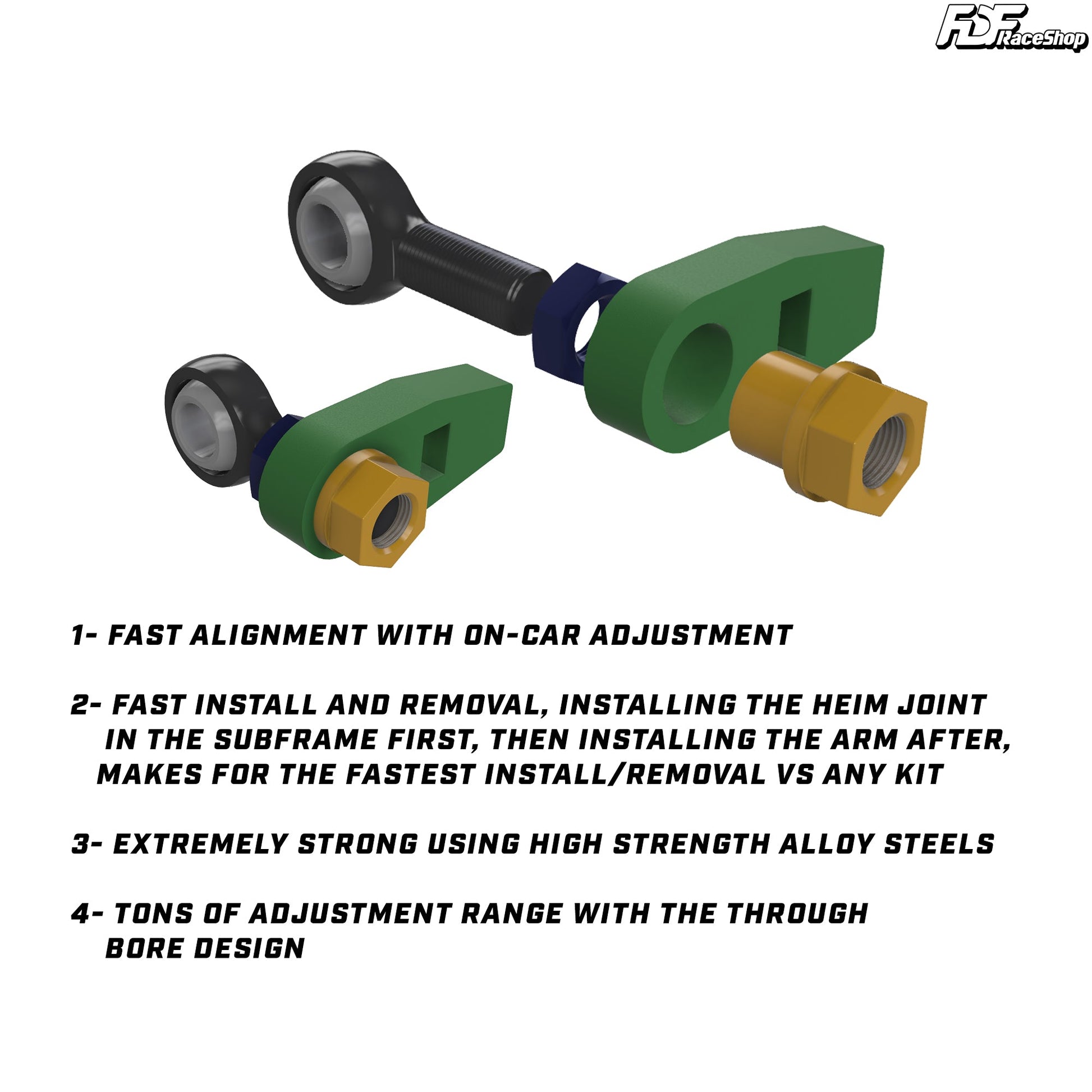

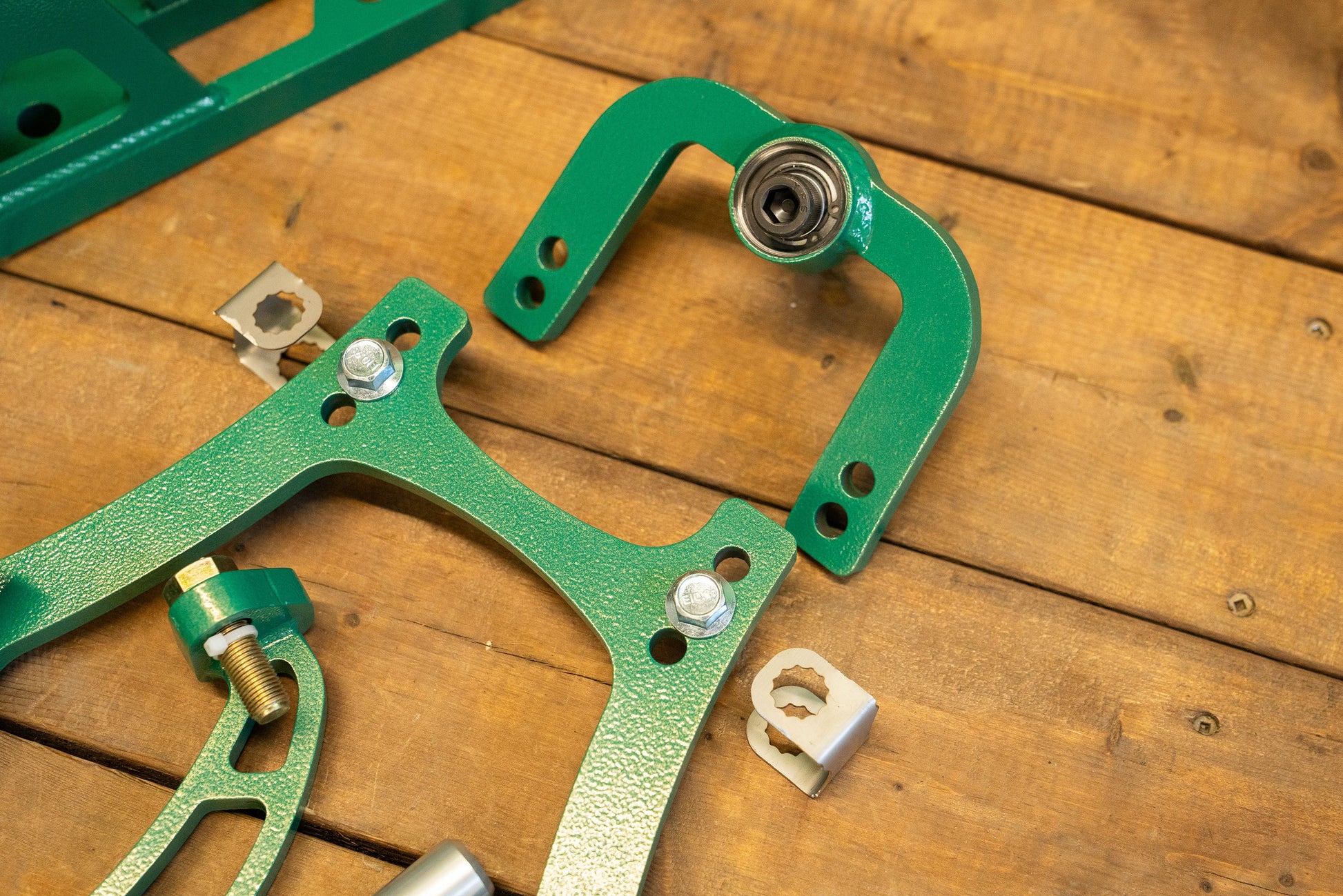

The adapter bolts right onto your OEM knuckle, keeping things simple while still delivering serious angle. It comes with full lower control arms and upper control arms that use a nut and bolt-style adjuster, so you can quickly dial in camber or arm length right on the car.

Tons of angle, easy adjustments, and a setup that’s been proven across all kinds of JZX and IS drift builds.

Key Features:

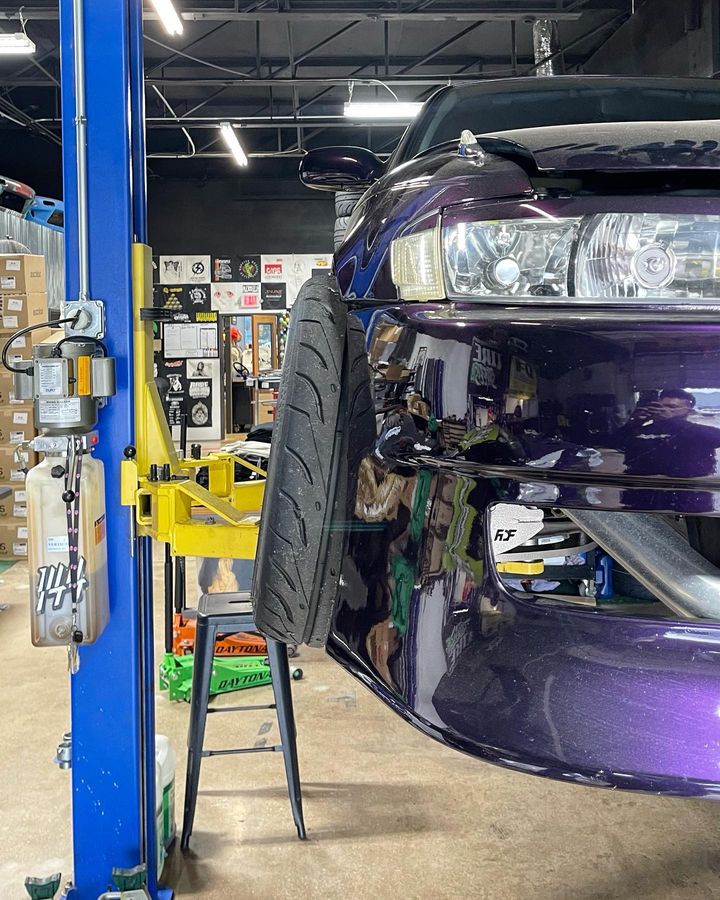

• Angle: 65+ degrees depending on your steering rack offset and wheel setup.

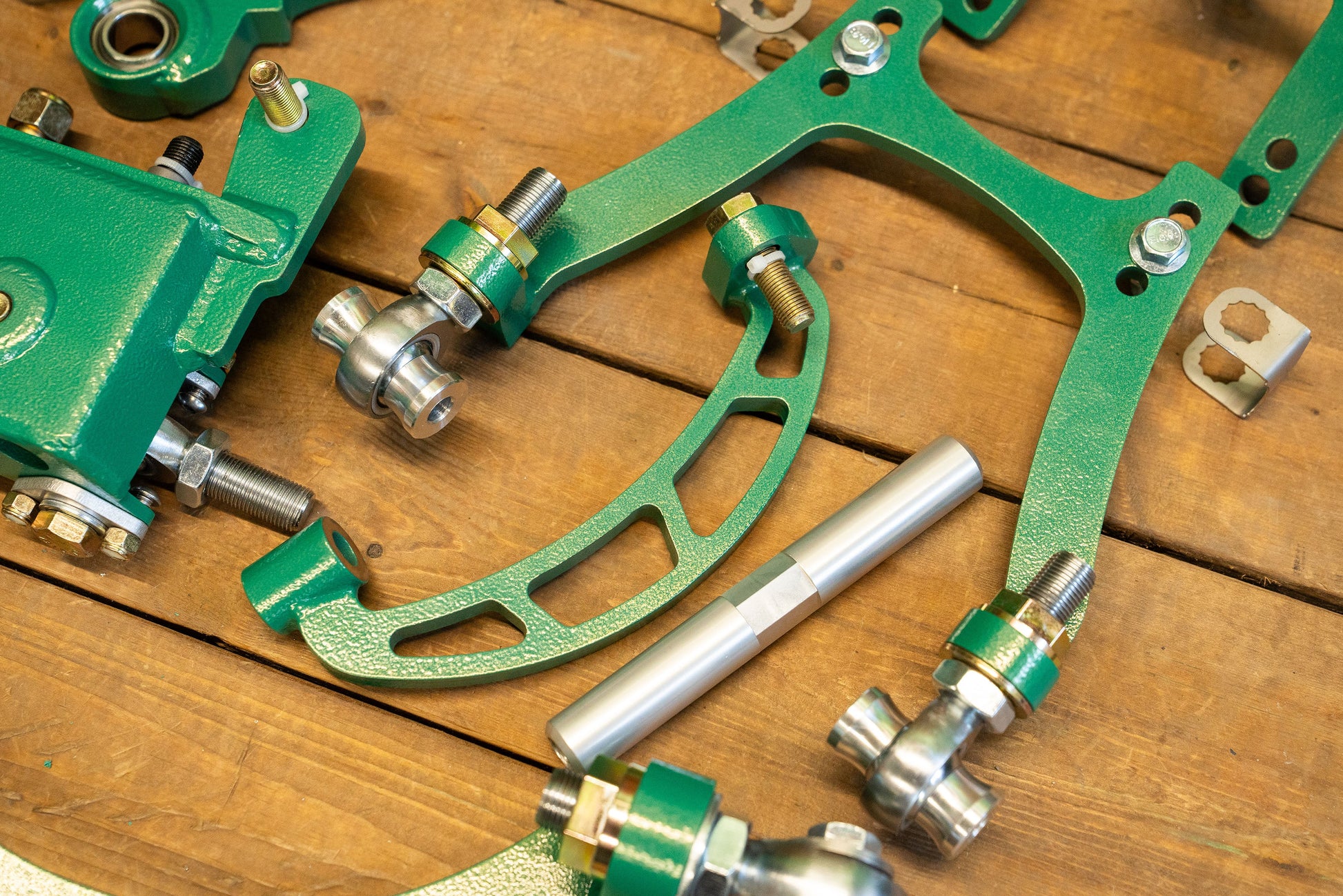

• Tie-rods: The kit includes tie-rod adaptors to connect to the knuckle.
• Ackermann: Adjustable ackermann (other settings offered upon request).
• Roll Center: Optimized handling by adding 40mm of roll center correction.
• Bump steer: Corrected bump steer for a lowered ride height.
• Caster: Optimized caster, and trail for the best alignment torque feedback.
• Camber: Optimized camber ranging from -3 to -6.
• Track Width: 50mm wider per side creating a stable and high clearance front end.
• Suspension Travel: Long travel range, full lock to full lock at any point throughout suspension travel for increased grip.
• Joint: Chromoly heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable.
• Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum.


Note: For custom colors, choose one from Prismatic Powders. Please list the item code and name within the order notes.

Note: Orders require 2–3 weeks for fabrication before shipping.
