Link-TCC04 4 Channel EGT to CAN Module

Link TCC04 4 Channel EGT to CAN module, powered by CANchecked

The TCC04 EGT to CAN module allows you to connect up to four Type-K thermocouples and send the values via CAN bus and/or monitor them directly on your wireless enabled device.

Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit).

The TCC04 feature a four-pin DTM connector for CAN/power and miniature K-sockets. It is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration.

Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status.

Features:
-    4 x cold junction compensated type-K inputs
-    Four-pin DTM connector & miniature K-sockets.
-    CAN Bus connection to ECU (Pre-Configured for Link ECU)
-    Measuring range from 0 to 1250°C (32 to 2282°F) with 0.25°C resolution
-    Detection of short circuit to ground or if no type-K is connected
-    Standard mini k thermocouple connector
-    Full configuration and monitoring over wireless
-    Adjustable sample frequency up to 100Hz

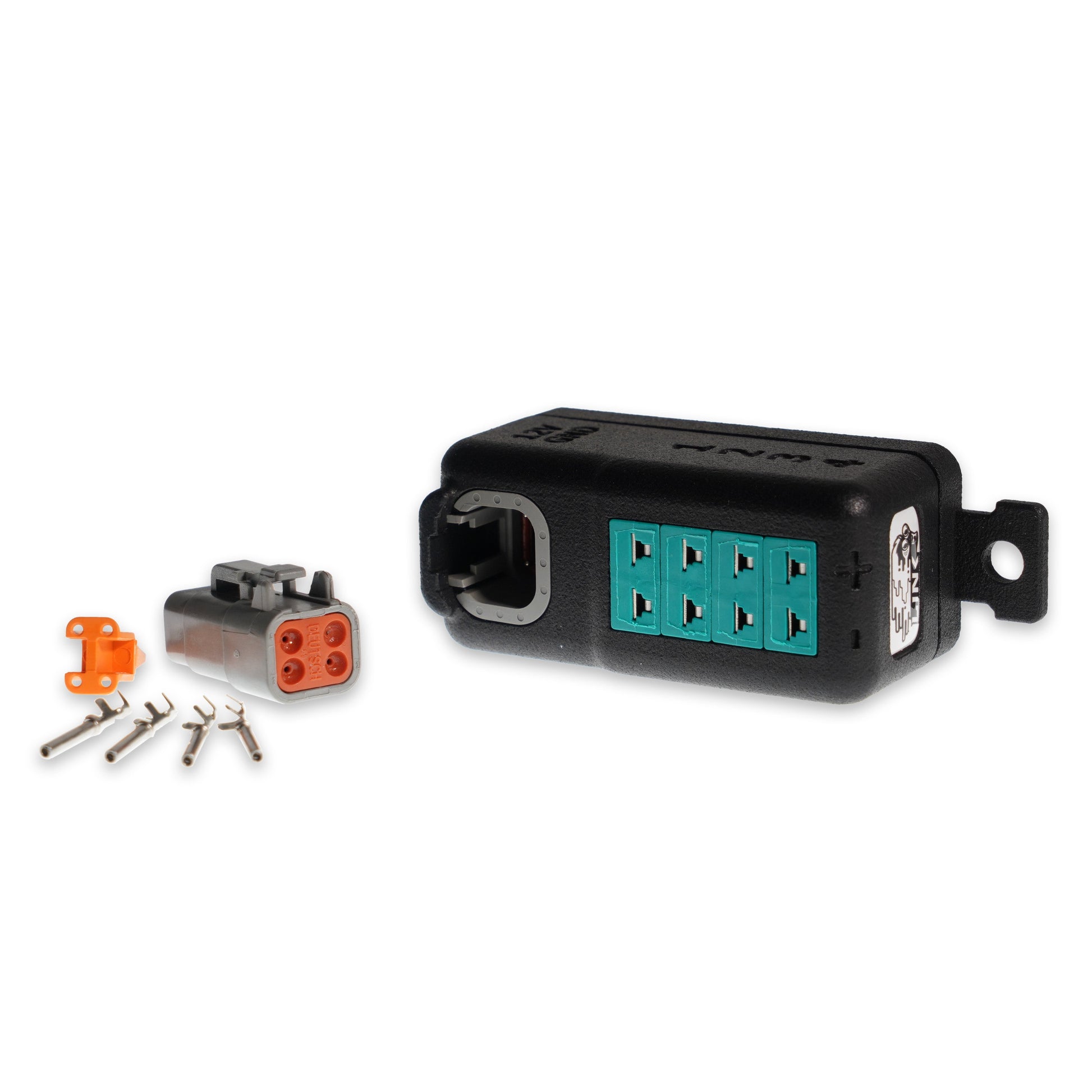

Box Contents:
1 x CAN EGT Module
1 x DTM4 Mating Connector Kit
2 x Link Stickers
